When using a Single Layer Water Shader, a common issue you'll experience is with Directional Light casting harsh shadows from nearby geometry. These shadows appear incorrectly on the water plane, creating an unnatural effect.

In this post, I'll show you how to fix this. We'll explore the setup, analyze the issue and provide step-by-step solutions, including ray-traced shadows, alternative lighting methods, and configuration tweaks.

Video Tutorial

Understanding the Problem

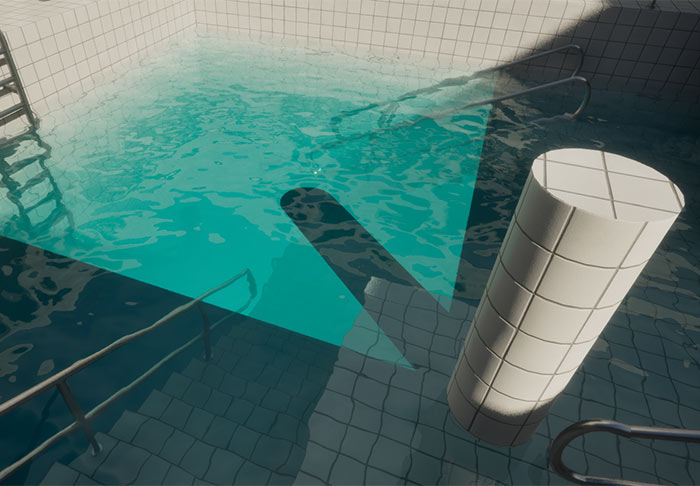

When a Directional Light casts shadows onto a water plane that uses Single Layer Water Material - blocky, hard shadows appear on the water surface, which shouldn't happen.

Water is semi-transparent, so harsh shadows from geometry should not be visible on its surface.

To diagnose the problem, let's review the setup:

• Water Plane Material: The Material uses the Single Layer Water shading model. It works correctly in interior scenes without a Directional Light, so the material itself is not the issue.
• Water Plane Properties: Shadow casting is disabled for the plane, ruling out the plane as the cause, since shadows would appear behind, not on top.
• Directional Light: Shadow casting is enabled, as it should be for realistic lighting. Disabling it would disrupt the scene's lighting, so this isn't a viable fix.

The issue comes from the Directional Light. It doesn't seem to handle shadows correctly on top of Single Layer Water shader.

Below are 3 solutions to address this problem.

Solution 1: Ray-Traced Shadows

Using Ray Traced shadows resolves the issue by accurately rendering shadows on the water plane, ensuring the water behaves as expected without harsh shadows.

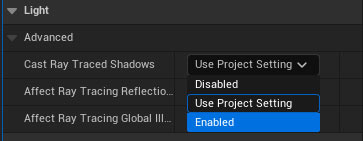

Select the Directional Light in your scene. In the light's properties, locate the "Cast Ray Trace Shadows" setting (under the "Ray Tracing" category). Change it from "Use Project Settings" to "Enabled."

This immediately corrects the shadow issue, allowing the water to appear transparent where shadows previously appeared.

You can enable Ray Trace Shadows Globally. Go to Edit > Project Settings and search for "Ray Tracing".

Enable the "Ray Trace Shadows" option.

This applies Ray Trace shadows across the project, ensuring consistent behavior for all Directional Lights.

Note: an RTX-compatible graphics card is required for Ray Tracing and Ray Tracing must be enabled in the project settings.

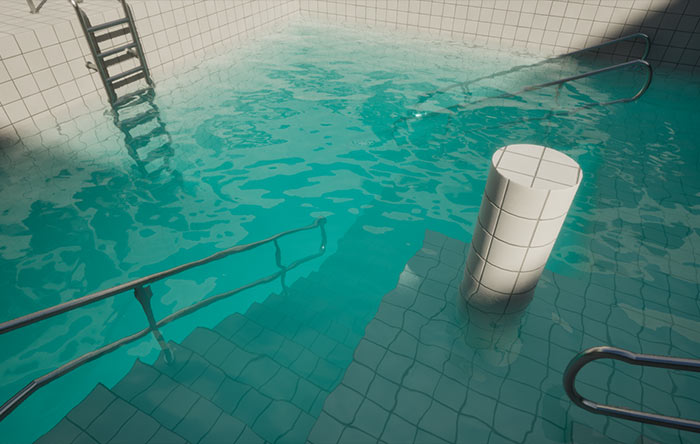

With ray-traced shadows enabled, the water plane no longer shows harsh shadows from nearby geometry, behaving as expected. This is the most effective solution for projects that support ray tracing.

Solution 2: Avoid Using Directional Lights

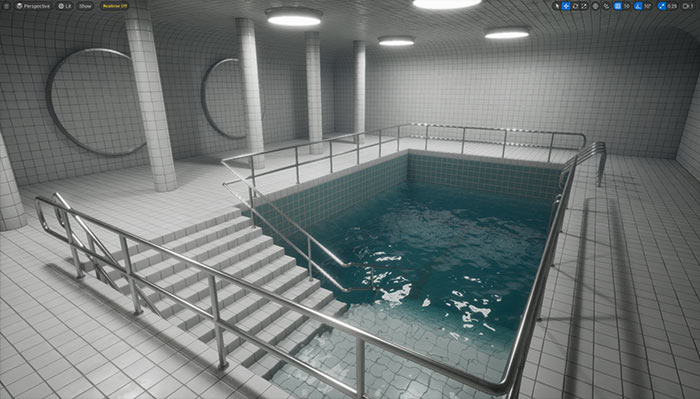

Since the Directional Light causes the issue, one solution is to eliminate it and use interior lights, such as point lights, rectangle lights, or spotlights, which work correctly with Single Layer Water shaders.

This approach restricts your lighting design, as Directional Lights are essential for outdoor scenes. Use this solution only when interior lighting is sufficient for your scene.

Solution 3: Use HDRI Lighting with Skylight

Another alternative is to replace the Directional Light with a Sky Light using an HDRI (High Dynamic Range Image) to light the scene. This eliminates the shadow issue while providing natural lighting.

Delete the directional light from the scene then add or select a Sky Light in your scene.

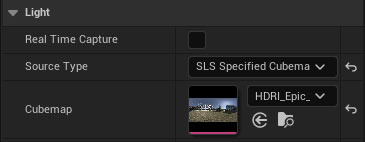

Disable "Realtime Capture" in the skylight settings and set the "Source Type" to "SLS Specified Cubemap." Then choose an HDRI cube map to light the environment.

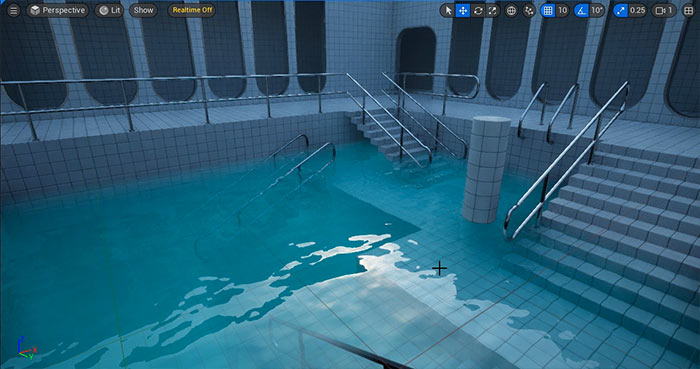

The HDRI-lit scene eliminates harsh shadows on the water plane, provides realistic reflections and maintains a natural look. This solution doesn't require Ray Tracing to be used.

Solution 4: Adjust Directional Light Source Angle

Another viable option is to soften shadows by adjusting the Directional Light Source Angle.

Select the Directional Light and increase the "Source Angle" property. Higher values soften contact shadows on Static Meshes.

The only problem is it doesn't soften the shadows on the water plane. You'll need to enable 3 console commands.

Here is how.

Close your project in the editor. In the Epic Games Launcher, go to the Library tab, right-click your project, and select "Show in Folder."

Navigate to the Config folder and open DefaultEngine.ini (make a backup first).

Locate the last r. console command (e.g., r.LumenHardware).

Add the following three commands below it:

• r.Water.SingleLayer.DepthPrepass=1
• r.Water.SingleLayer.ShadersSupportVSMFiltering=1
• r.Water.SingleLayer.VSMFiltering=1

Save the file and reopen your project.

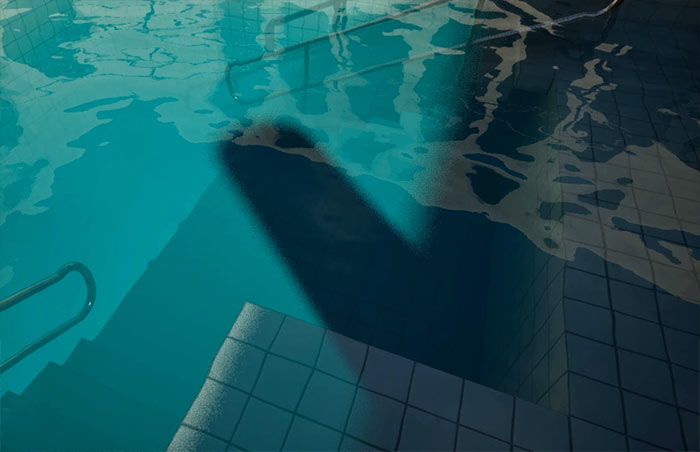

Increase the source angle again to see softer shadows on both Static Meshes and the water plane.

Limitations: This solution only works for shallow water, where the bottom surface (e.g., landscape or static mesh) is visible.

Harsh shadows persist on deeper water, making this a limited fix.

Conclusion

For the best results, enable Ray Traced Shadows if your hardware supports it.

If not, consider HDRI lighting or interior lights to achieve realistic water rendering.

For shallow water, tweaking the source angle with console commands can be a quick fix. Experiment with these solutions to find the best fit for your scene.
